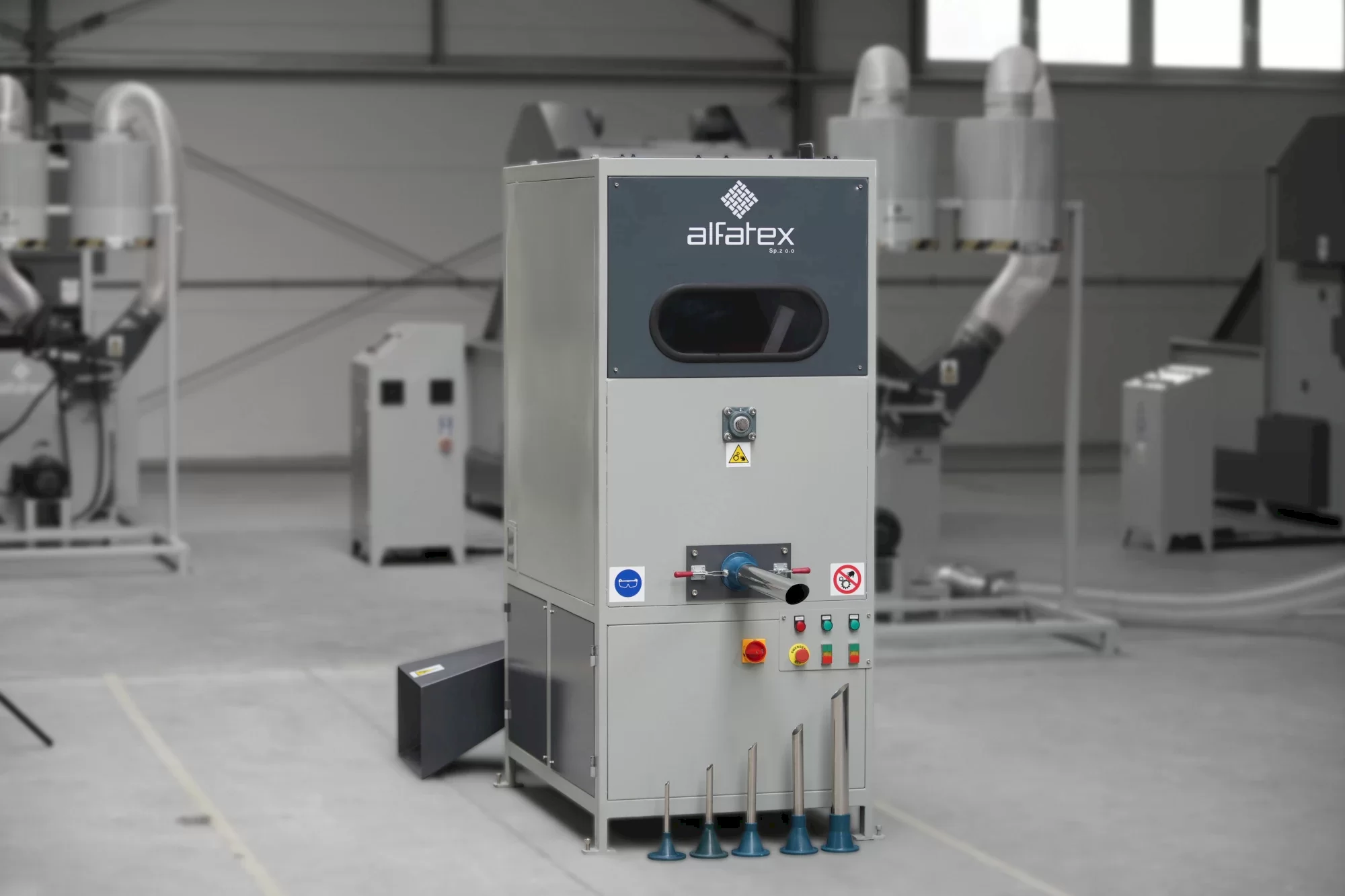

It is a machine designed to fill toys, pillows, braid pillows and beddings, among other things.

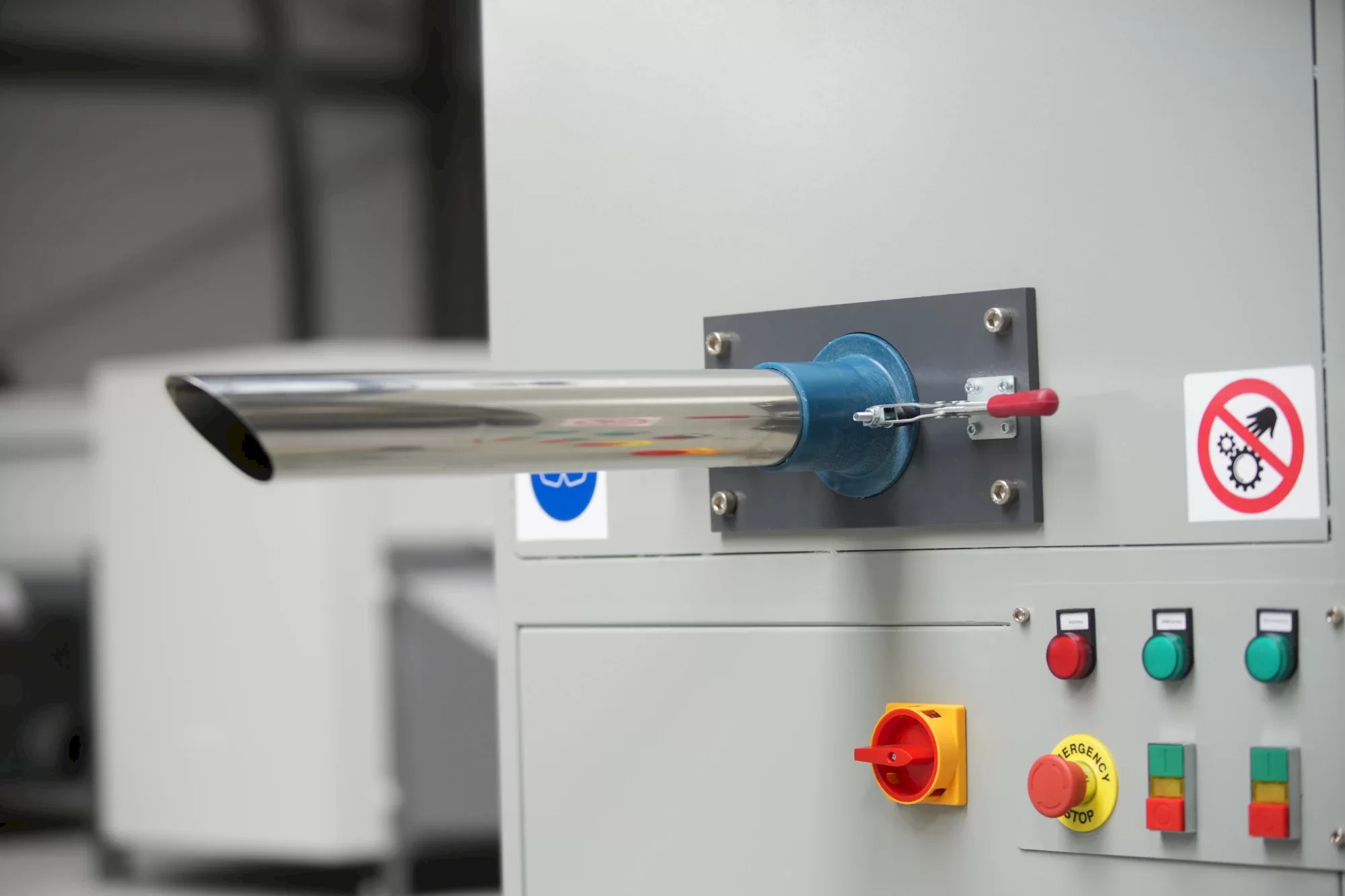

For the filling, the following can be used: carded fibre, ball fibre, foam sticks or granules. The machine has a volume tank with rotary agitator and a work station. A powerful supply fan is also included. The diameter of the nozzle can be adjusted as required. A compressed air connection to the machine is essential. The filling process starts when the operator presses the footswitch.
FEEL FREE TO VIEW THE ONLINE PRESENTATION AND CONTACT OUR EXPERT.
THE MACHINES CAN BE VIEWED AND TESTED AT OUR PREMISES.
Model:
ALFATEX AM – 301
Version:
powder-coated steel
Protection class:
IP 20
Machine power:
0,4 kW
Fan power:
2,2 kW
Power supply:
400 V (opcja 230 V), pneumatic
Air and pressure demand:
up to 980 L air/min (clean and stable)
6-10 bar
Filling nozzle:
Ø 50 mm x 370 mm long (included)
optionally Ø 12, 18, 25, 30, 60 [mm]
Tank capacity:
1000 L
Machine dimensions:
1200 x 800 x H 2000 [mm]
Fan dimensions:
550 x 1000 x H 1000 [mm]
Control:
front panel + footswitch
Net weight:
250 kg
Gallery
Ask for the product
Introducing the modelAM-301
It is a machine designed to fill toys, pillows, braid pillows and beddings, among other things.
For the filling, the following can be used: carded fibre, ball fibre, foam sticks or granules. The machine has a volume tank with rotary agitator and a work station. A powerful supply fan is also included. The diameter of the nozzle can be adjusted as required. A compressed air connection to the machine is essential. The filling process starts when the operator presses the footswitch.
FEEL FREE TO VIEW THE ONLINE PRESENTATION AND CONTACT OUR EXPERT.
THE MACHINES CAN BE VIEWED AND TESTED AT OUR PREMISES.
Model:
ALFATEX AM – 301
Version:
powder-coated steel
Protection class:
IP 20
Machine power:
0,4 kW
Fan power:
2,2 kW
Power supply:
400 V (opcja 230 V), pneumatic
Air and pressure demand:
up to 980 L air/min (clean and stable)
6-10 bar
Filling nozzle:
Ø 50 mm x 370 mm long (included)
optionally Ø 12, 18, 25, 30, 60 [mm]
Tank capacity:
1000 L
Machine dimensions:
1200 x 800 x H 2000 [mm]
Fan dimensions:
550 x 1000 x H 1000 [mm]
Control:
front panel + footswitch
Net weight:
250 kg
