Introducing the model   AM-102

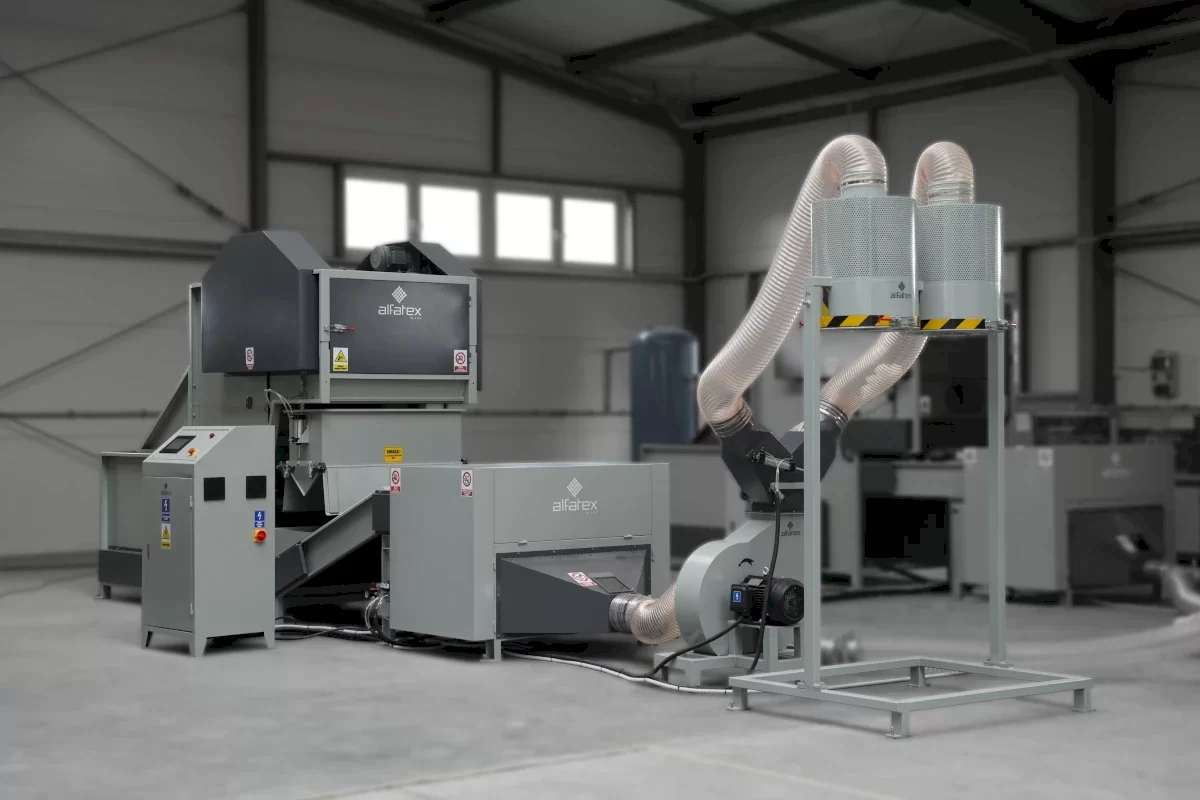

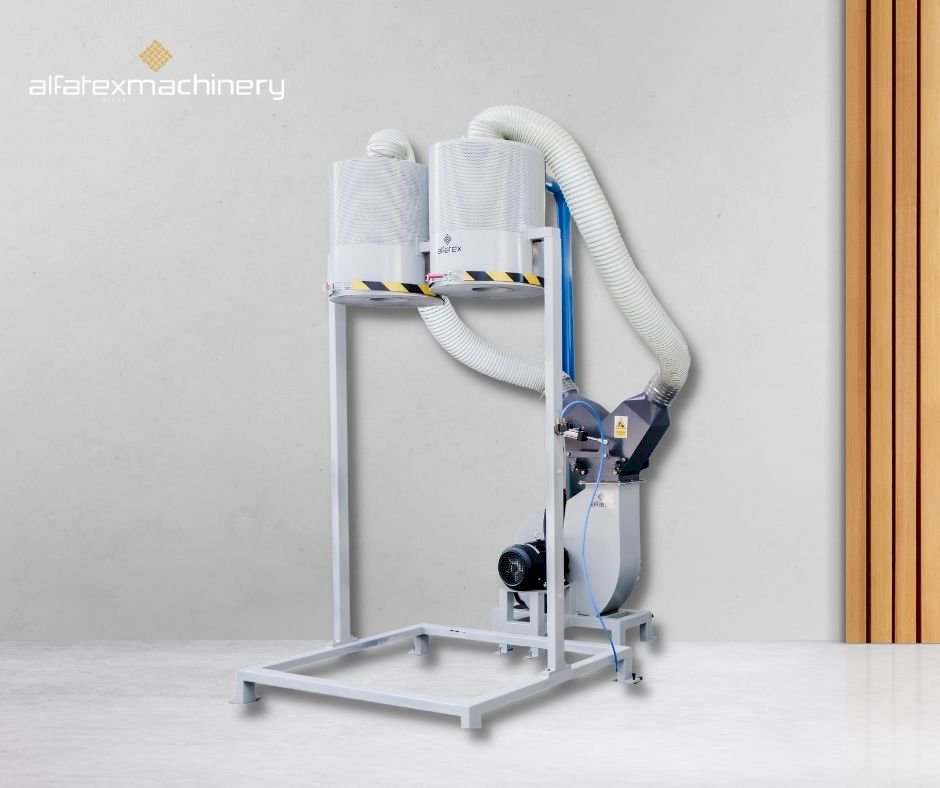

Set allowing the manufactured product to be packed in 2 plastic bags (alternately).


The system consists of a bi-directional transfer fan, packaging module including support structure, pneumatic switch and air connection. Compatible with Alfatex machines, e.g. line for manufacturing carded fibre, ball fibre, foam stick machine, foam shredder to produce granules and other equipment. Electric-pneumatic equipment included.

The set includes:

  • 1x packaging unit for 2 bags
  • 1x heavy-duty bi-directional transfer fan
  • 1x bi-directional pneumatic system
  • 2x reinforced transfer pipes
Model ALFATEX AM-102
Diameter of one basket: 460mm lub 610
Version powder-coated steel
Protection class: IP 20
Fan power: 4,0 kW
Capacity: depending on the product
Power supply: 400 V
Bagging module dimensions: for 610 mm basket diameter – 1,500 x 1,200 x 2,350 H (mm)
for 460 mm basket diameter – 1,220 x 1,000 x 2,350 H (mm)
Fan dimensions: 660 x 800 x 1360 H (mm)
Weight: 120 kg
